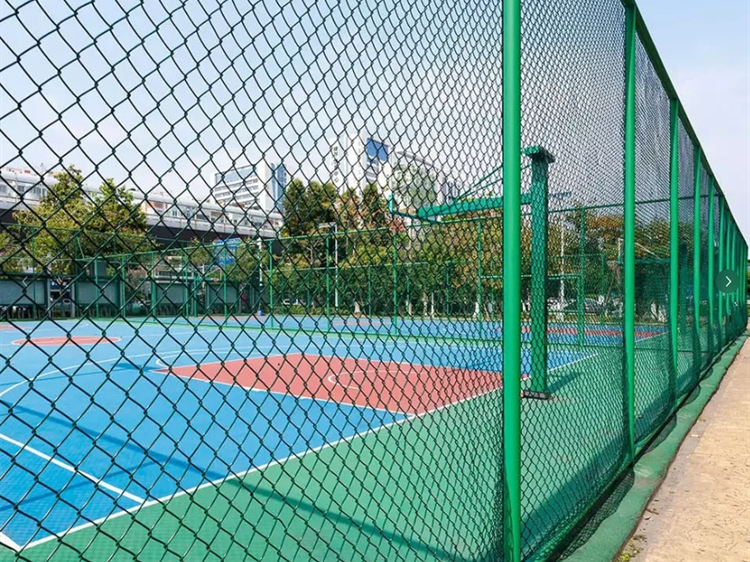

Sports and high-ball fencing
Tall perimeter fencing for sports grounds: it keeps balls inside the field of play, guides spectators and still allows clear sightlines. Panels are supplied as stacked tiers so that standard container dimensions are respected, and systems are quoted to importers, contractors and clubs with the posts, fixings and gates included.
Also known as: Sports fence · Ball stop fence · Stadium perimeter fence · Multi-tier fence
Typical range. Final dimensions, coating mass and tolerances are confirmed on the order drawing.
| Construction | Double wire 2D mesh panel or chain link mesh, depending on the height and budget |
|---|---|
| Mesh aperture | 50×200 mm for twin wire panels; smaller apertures available where needed |
| Wire diameter | Inner core 4.0 mm; after coating 5.0 mm |
| Overall height | 3,000–6,000 mm, built from stacked panel tiers |
| Panel size | Width 2,000–3,000 mm, height 2,000–4,000 mm per tier |
| Post section | 60×60 or 80×60 mm SHS, sized for the exposed height and wind load |
| Top arrangement | Flat, angled inwards or curved top |
| Coating | Hot-dip galvanized ≥250 g/m² plus polyester powder ≥100 µm |
| Accessories | Anti-vibration rubber pads, clamps, bracing for corner and end posts |
| Packing | Protected pallets sized for standard container loading |
What this detail shows
Stacked panel tiers clamped to a heavy post, showing the connection at the tier joint.
Related specification
Need this fixing arrangement matched to your layout? Send the drawing and we will confirm the components.
Ask About Fixings| Panel mesh | Twin-wire welded mesh or chain link mesh in galvanized wire |
|---|---|
| Coating | Hot-dip galvanized ≥250 g/m² with polyester powder top coat |
| Posts | Heavy square or rectangular hollow section, galvanized to match |
| Ball containment | Aperture and height matched to the sport being played |
Typical configuration
H 4,000–6,000 mm behind goals, 2,000–3,000 mm along touchlines
Higher sections are concentrated where the ball leaves the pitch most often.
Typical configuration
H 3,000–4,000 mm, 50×200 mm aperture
Perimeter and dividing fences between adjacent courts.
Typical configuration
H 3,000–6,000 mm, full enclosure
Complete enclosures where balls must be fully contained.
Typical configuration
H 2,000–4,000 mm, colour to match venue
Combined with spectator barriers and gates.
Panels above about 3,000 mm become difficult to handle and uneconomical to ship. Stacking two or three shorter tiers reaches the same height while keeping component sizes within standard container limits.
It follows where the ball actually leaves the field. Behind goals and at the corners, the fence is usually higher; along the touchline it can be lower. A common approach is to vary the height around the perimeter rather than use one value everywhere.
Yes, and it becomes the governing factor above about 4,000 mm. The post section and wall thickness must be checked against the local wind speed, so the site location should always be given when enquiring.
Tall panels can rattle in the wind where they meet the post. A rubber pad between the panel and the clamp reduces noise and wear at the fixing point.
Yes. Pedestrian gates, double-leaf vehicle gates and sliding gates can be supplied in the same system and finish, sized to the required clear opening.
Lower-cost mesh option for sports boundaries and enclosures.
View specifications →
The full panel fence family: 3D, framed, BRC, double wire and 358.
View specifications →
Double-twisted wire baskets for retaining and erosion control.
View specifications →Send the sport, the field dimensions, the required fence height around the perimeter and the site wind conditions.
